ES-943U Time Code Remote Display

ES-943U

Time Code Remote Display

Click Image to Enlarges

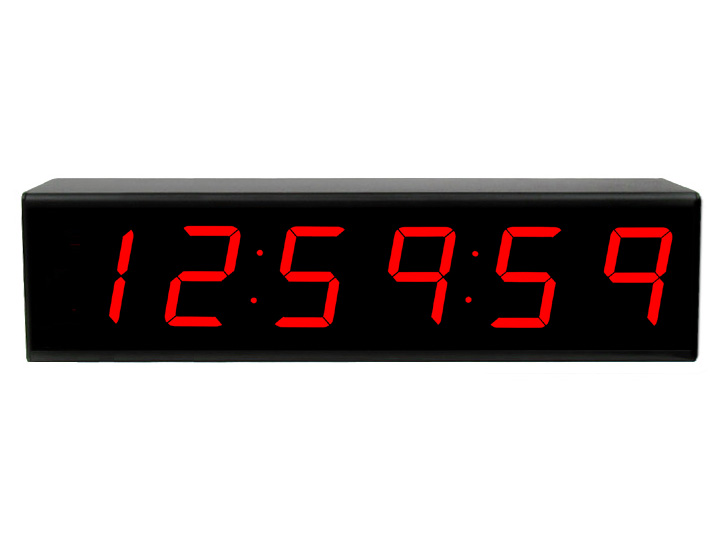

The ES-943U is a Time Code display featuring 4.0" bright red LED displays. The unit is housed in a black-textured aluminum wall-mount enclosure (7" H x 26" W x 3.5" D). The unit accepts, via the rear-mounted terminal block, either ESE Time Code™ (TC76™, TC89™, or TC90™), SMPTE/EBU Time Code (Time of Day only) or RS-232C ASCII Time Code(format "0", "1" or "A" at 9600 baud). The ES-943U will automatically determine which code is being received. A rear-mounted DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A"). If the Time Zone option is ordered, a rear-accessible DIP switch is installed for this function. If receiving ESE Time Code™ from a timer, the unit will display Minutes, Seconds and Tenths of Seconds (if the timer has the Tenths option).

  • Wall Mount Display
  • Reads SMPTE/EBU, ASCII & ESE Time Code™
  • Automatic Code Detection
  • Six 4.0" Red LED Displays
  • Viewing Distance 120'
  • Switchable Between 12 & 24 Hour Format Display
  • Switchable to Date display
  • Optional Time Zone Offset
  • NTP Option Available
  • UL & 220-240 VAC options available (110-120 VAC is standard
