DV-212 3G/HD/SD SDI Reclocking Distribution Amplifier


3G/HD/SD SDI Reclocking Distribution Amplifier

Click Image to Enlarge

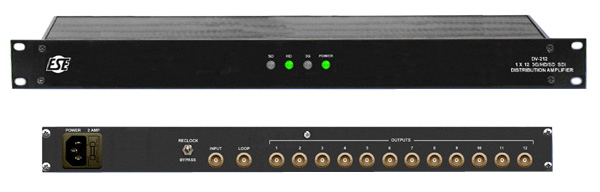

The DV-212 is an SDI digital video (3G, HD & SD) 1 x 12 Distribution Amplifier. The unit features high-performance & low-cost and is able to distribute 3Gb/s, 1.5Gb/s & 270Mb/s data rates. The DV-212 automatically detects the data rate and then re-clocks and equalizes the signal. The Distribution Amplifier can equalize 400m @ 270Mb/s, 200m @ 1.5Gb/s and 140m @ 3Gb/s of 1694A coax cable. A non-reclocked loop output is also provided. An external power supply is not required as the DV-212 is completely self-contained requiring only 85-264VAC to operate.

  • 12 Reclocked Outputs (BNC)
  • 1 Non-Reclocked Loop Output (BNC)
  • 270Mb/s, 1.5Gb/s, 3Gb/s
  • Reclocking & Equalization
  • Automatic Input Rate Detection
  • Reclocking Bypass Switch (rear)
  • 1 unit high Rackmount
  • DVB-ASI compliant at 270 Mb/s
  • 85-264VAC Operation
