ES-461U SMPTE Timecode Generator


SMPTE Timecode Generator

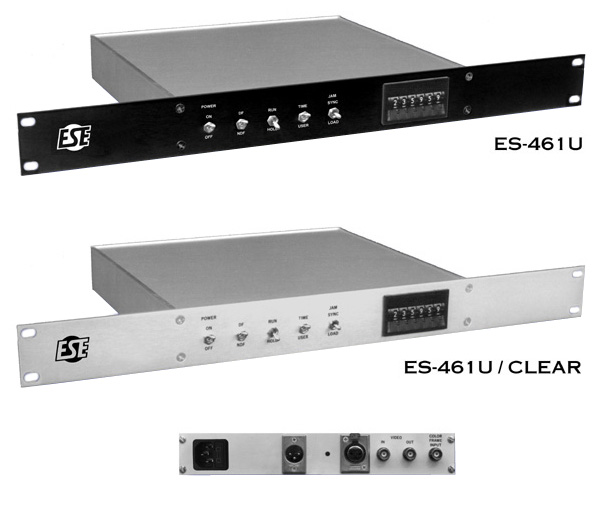

Click Image to Enlarge

The ES-461U is a microprocessor-based unit which can Generate SMPTE time code. All controls are front panel mounted while the inputs and outputs are accessible via rear mounted connectors.

  • Generates Time and User Bits
  • Jam Sync Time Code input
  • Manual Time preset via thumbwheel switch
  • Balanced or Unbalanced Time Code output
  • Drop-Frame/Non Drop-frame modes
  • Video/Black-Burst and Color Frame inputs
