1x4 Video Distribution Amplifier PC Card
Click Image to Enlarge

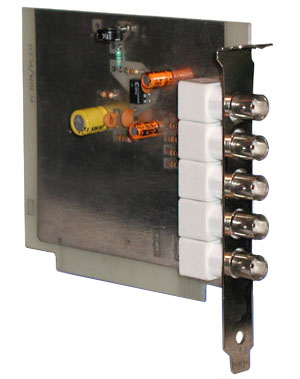

The PC-207A Video Distribution Amplifier PC Card provides a 75 Ohm terminated input and four isolated outputs, all accessible via BNC connectors. Screwdriver-adjustable Gain and Equalization controls are provided, and they are accessible from the top. Up to 1000 feet of cable may be compensated by adjusting the EQ trimmer. The Gain control provides an overall signal level adjustment of - 2 to +3 db.
