LX-520U 60 Minute Master Timer

LX-520U

60 Minute Master Timer

Click Image to Enlarge

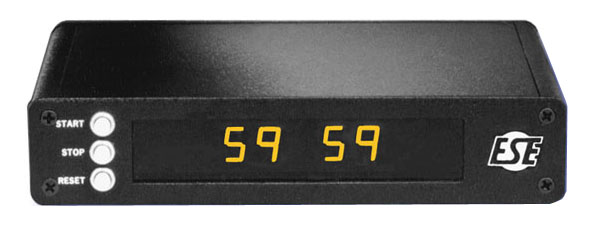

The LX-520U is a 60 Minute Up Timer. Start, Stop and Reset controls are provided on the front of the case. A remote control input is accessible on a rear-mounted DB-9 connector. A rear-mounted BNC connector provides ESE Timer Code for driving up to 100 remote slave displays.

  • .56" Yellow LED Display
  • Ruggedized Baked Powdercoat Aluminum case
  • 60 Minute Up count range (00:00 - 59:59)
  • Start, Stop, Reset functions
  • Remote control input
  • 4 Isolated Trigger Reset inputs
  • Optional Tenths of Seconds display
  • ESE Timer Code™ output
  • 220-240 VAC (110-120 VAC is standard) & UL options available
