3G/HD/SD SDI Quad 1x2 Reclocking Distribution Amplifier
Click Image to Enlarge

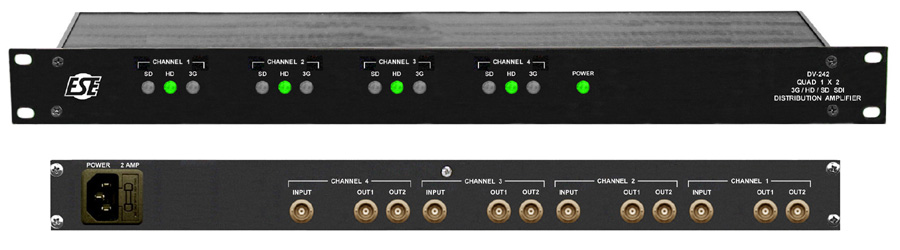

The DV-242 is an SDI digital video (3G, HD & SD) Quad 1 x 2 Distribution Amplifier. The unit features high-performance & low-cost and is able to distribute 3Gb/s, 1.5Gb/s & 270Mb/s data rates. The DV-242 automatically detects the data rate and then re-clocks and equalizes the signal. The Distribution Amplifier can equalize 400m @ 270Mb/s, 200m @ 1.5Gb/s and 140m @ 3Gb/s of 1694A coax cable. An external power supply is not required as the DV-242 is completely self-contained requiring only 85-264VAC to operate.
