DV-207 3G/HD/SD SDI Reclocking Distribution Amplifier

DV-207

3G/HD/SD SDI Reclocking Distribution Amplifier

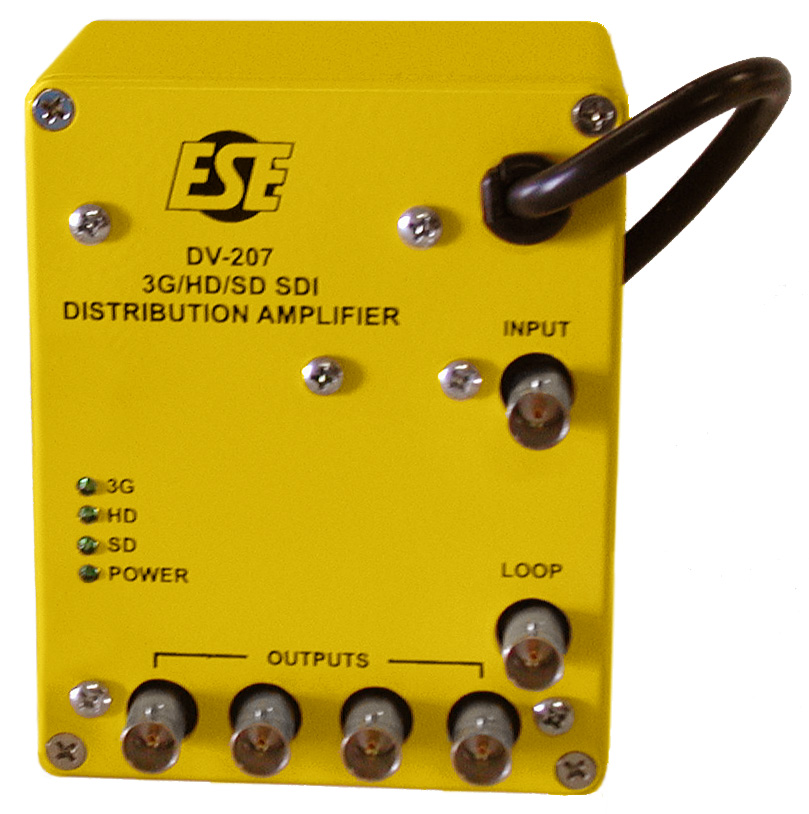

Click Image to Enlarge


The DV-207 is an SDI digital video (3G, HD & SD) 1 x 4 Distribution Amplifier. The unit features high-performance & low-cost and is able to distribute 3Gb/s, 1.5Gb/s & 270Mb/s data rates. The DV-207 automatically detects the data rate and then re-clocks and equalizes the signal. The Distribution Amplifier can equalize 400m @ 270Mb/s, 200m @ 1.5Gb/s and 140m @ 3Gb/s of 1694A coax cable. A non-reclocked loop output is also provided. An external power supply is not required as the DV-207 is completely self-contained requiring only 117VAC or 220VAC (option J) to operate. The small diecast enclosure can be easily placed behind an equipment rack.

  • 4 Reclocked Outputs (BNC)
  • 1 Non-Reclocked Loop Output (BNC)
  • 270Mb/s, 1.5Gb/s, 3Gb/s
  • Reclocking & Equalization
  • Automatic Input Rate Detection
  • Reclocking Bypass Switch (internal)
  • DVB-ASI compliant at 270 Mb/s
  • 117 VAC (standard) or 220 VAC (option 'J')
  • DC Option -DV-207/DC
