ES-410 GPS Based Frequency Generator


GPS Based Frequency Generator

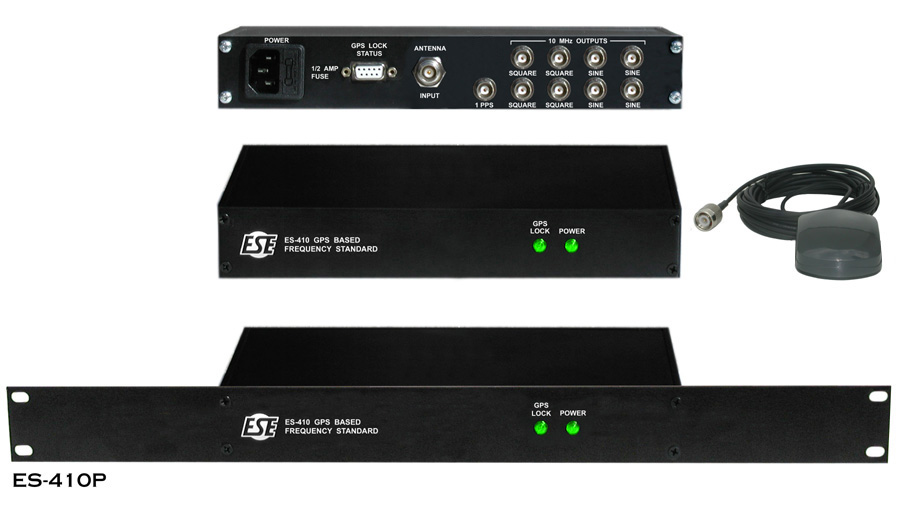

Click Image to Enlarge

The ES-410 generates a stable source of 10 MHz and 1 PPS using GPS (Global Positioning System) satellites as a reference. The unit provides 10 MHz in both Sine Wave and Square Wave (5 volt logic) form. Four Sine Wave and four Square Wave outputs are provided. The 1 PPS output is a 50% duty, 5 volt logic signal, positive-edge coinciding with the UTC seconds change. An ESE TC90™ Time Code output is also provided for driving remote time displays. A USB interface allows configuration of the Time Zone and other parameters, and outputs the time. If frequency distribution is needed, we offer the ES-210, a Quad 1x6 1/5/10 MHz Distribution Amplifier. The ES-210 provides four independent 1x6 Frequency DAs in a single rack-mount enclosure.

✪ The ES-410 is Radio Magazine's 2016 NAB Best of Show Award Winner.

  • Disciplined Temperature-Compensated Crystal Oscillator
  • GPS Timing Reference With 1 x 10-8 Accuracy
  • Eight 10 MHz Outputs (4 Sine Wave & 4 Square Wave)
  • Phase Coherent 1 PPS Output
  • ESE Time Code Output
  • Indoor/Outdoor Antenna with 16' Cable
  • Ruggedized Desk-Top Enclosure
  • USB interface
