ES-251 1 x 24 RS-232-C Distribution Amplifier

ES-251

1x24 RS-232C Distribution Amplifier

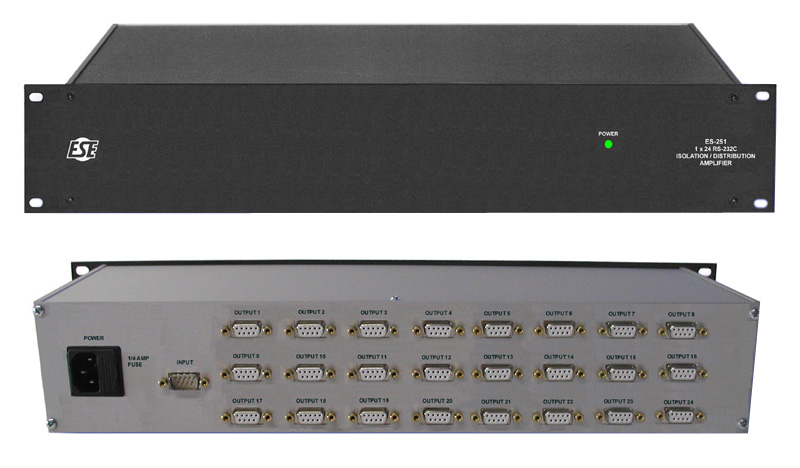

Click Image to Enlarge

The ES-251 is an RS-232-C Isolation and Distribution Amplifier. The amplifier circuit allows the incoming signal to be distributed via the 24 outputs. The unit receives RS-232-C and buffers the signal so that each of the 24 outputs can drive a single "user" at a distance of up to 50 feet (per output). All inputs and outputs are via rear mounted terminal DB-9 connectors. The two main purposes of the ES-251 are to:

1) improve the distribution capabilities of RS-232-C
2) provide isolation between users of RS-232-C

  • Use for distributing ASCII Time Codes
  • 24 isolated outputs
  • Male DB-9 Input connector
  • Female DB-9 Output Connectors
  • RxD feed thru on Channel 1 output for Query Applications
  • 220-240 VAC (110-120 VAC is standard) & UL options available
