ES-225A ESE Time Code to ASCII Converter


ESE Time Code™ to ASCII Converter

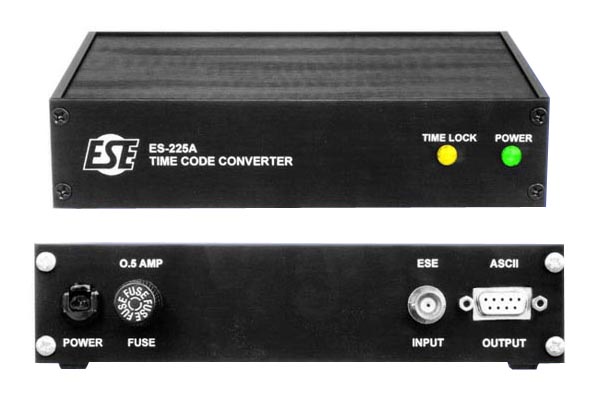

Click Image to Enlarge

The purpose of the ES-225A is to interface and synchronize a computer, a voice recorder or other equipment that accepts ASCII with a Master Clock or Master Timer (that has an ESE Time Code output). Master Clocks not equipped with an ESE Time Code output may be interfaced to a computer, etc. by using a different ESE Time Code Converter (e.g. SMPTE into ASCII, IRIG into ASCII, etc.).

  • Accepts ESE Time Code™ (TC76™, TC89™, TC90™)
  • RS-232 & RS-485 level signals available on DB-9 output connector
  • Selectable output Baud Rates (9600 standard)
  • ASCII output format selectable (Format "0", "1", ESE "A" or ESE "B"),
  • Input Time Code "Lock" indicator
  • Allows time synchronization of computers, recorders or other equipment
  • DOS software provided, Windows software available
  • Optional single rack mount available
  • 220-240 VAC (110-120 VAC is standard) & UL options available
