ES-217 Audio Distribution Amplifier


Audio Distribution Amplifier

Click Image to Enlarge

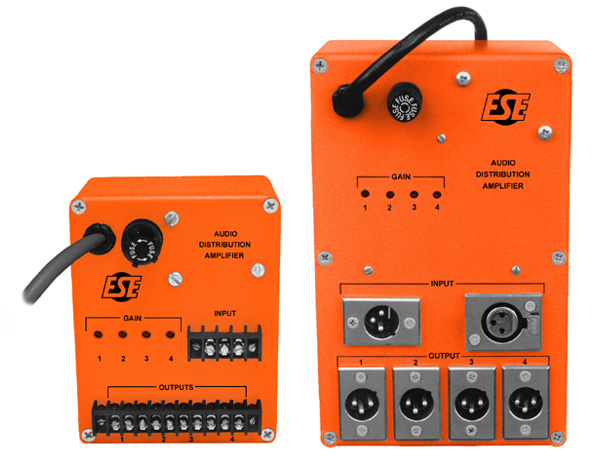

The ES-217 is an Audio Distribution Amplifier that accepts a balanced or unbalanced audio signal and produces four exact copies of that signal. The outputs are isolated and have recessed Gain controls. All inputs and outputs are accessible on terminal blocks for simple “permanent” installations. Or, if option “XLR” is specified, all inputs and outputs are available on XLR connectors for easy disconnect/reconnect.

  • 4 isolated outputs
  • Terminal Block or XLR version available
  • Balanced or Unbalanced connections possible, 600 ohms
  • Variable Gain, adjustable for each output, +18 db maximum
  • Transformerless design
  • May also be used for SMPTE & IRIG Time Codes
  • 220-240 VAC (110-120 VAC is standard) & UL options available
